Industrial Sensors With a Calibration Record, Not a Catalogue Number.
We are a Shenzhen engineering lab, not a trading listing. Every pressure, vibration, level
transmitter and split-core CT leaves our bench individually tested, laser-serialized and packed in
cut ESD foam — with a signed record of its as-found and as-left readings. Board-level cameras and
open-frame touch HMI ship from the same bench.
Dispatch
48 h
DHL Express from Shenzhen. 1-unit evaluation samples welcome — no MOQ.
Calibration
100 %
Every unit bench-tested across 5 points, ascending and descending.
Quote turnaround
< 12 h
Answered by the engineer who owns the bench — not a sales desk.
Most Chinese sensor suppliers stop at a price list. Most Western distributors stop at a box.
We test the unit, record the numbers, and ship it.
Evaluation samples ship singly. Prices shown are for one unit including the calibration record;
batch pricing starts at 10 pcs. Every line below is available for immediate dispatch from Shenzhen.
Ready Stock
IW-PT-16B$55 / 1 pc

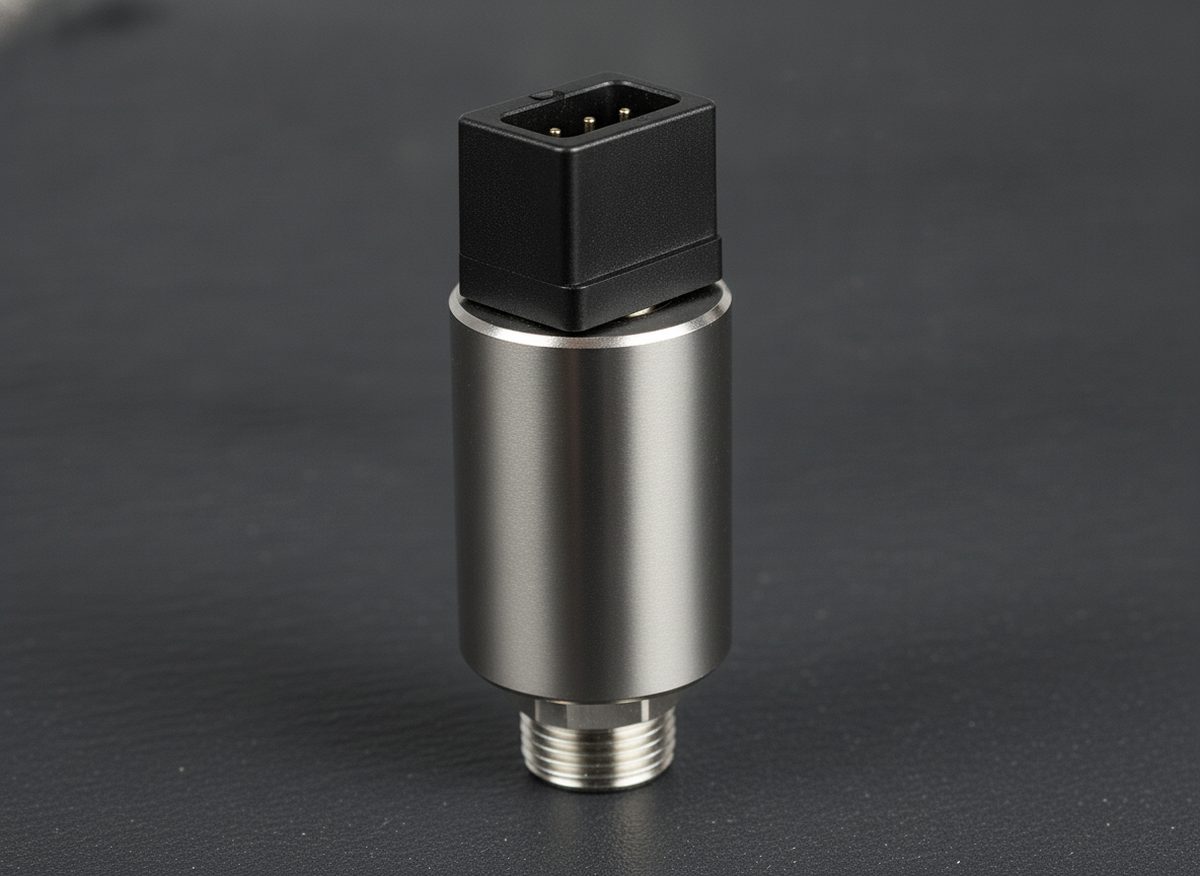

Compact industrial pressure transmitter for hydraulic, water
and compressed-air lines. Oil-filled piezoresistive core, 316L wetted parts.

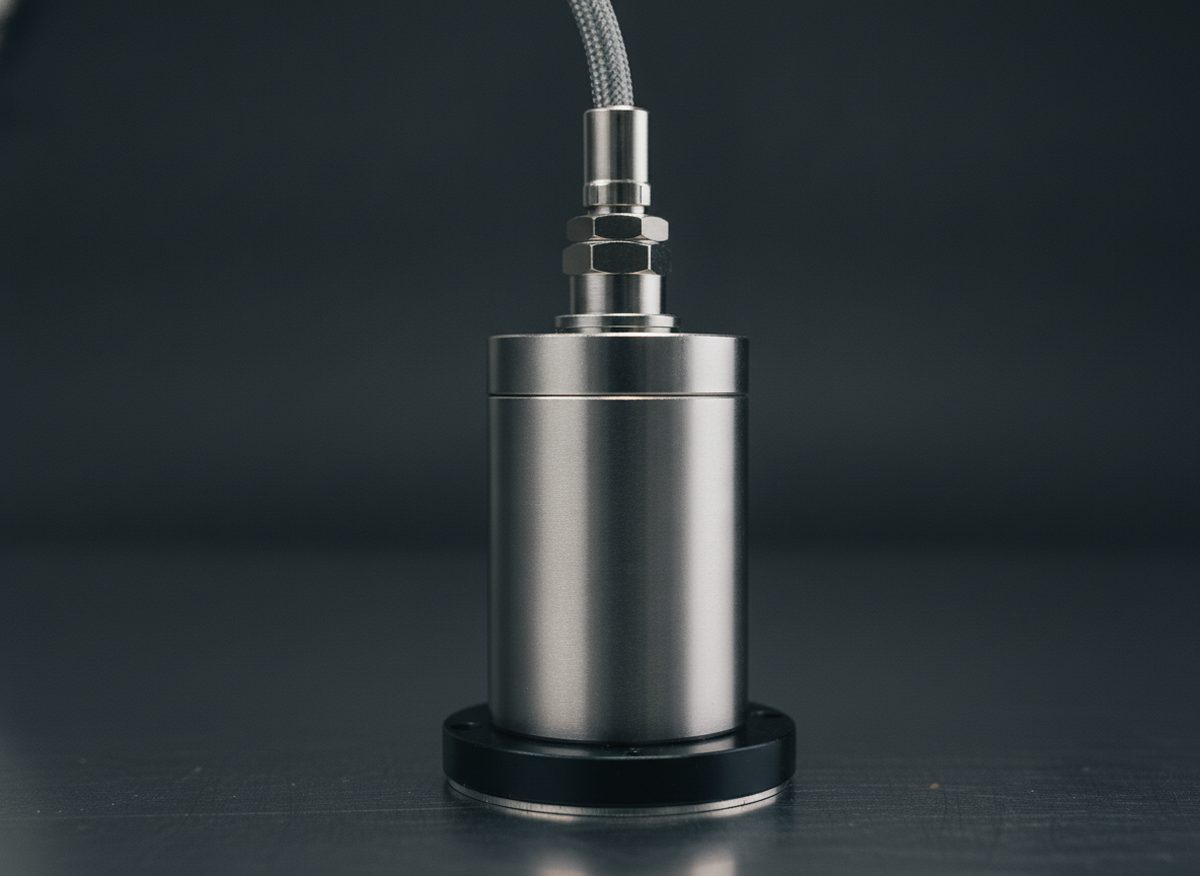

Loop-powered vibration transmitter for pump, motor and fan
bearing monitoring. Wires straight into a PLC analogue input — no charge amplifier, no analyser.

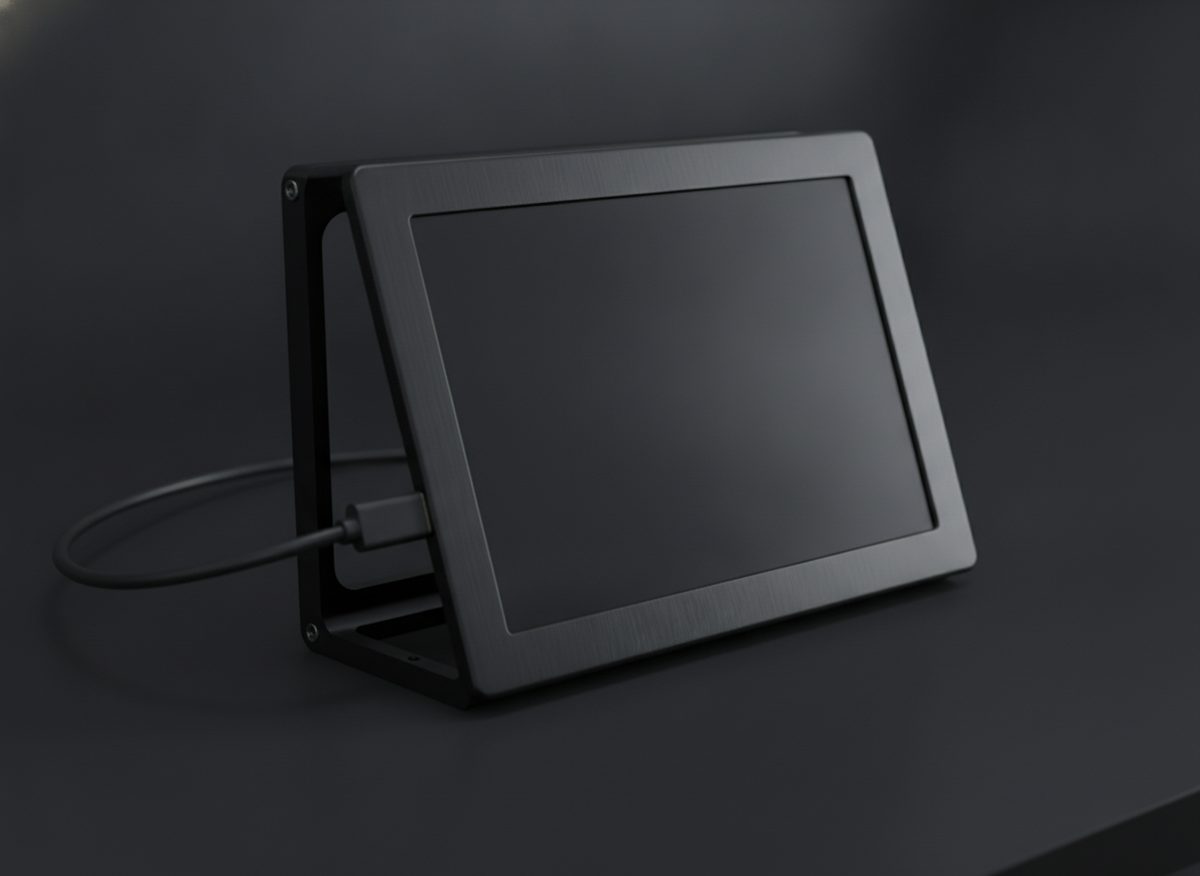

Open-frame 10.1" touch panel for machine builders. Display,
power and multi-touch travel over one Type-C cable — drop it into your own sheet-metal front panel.

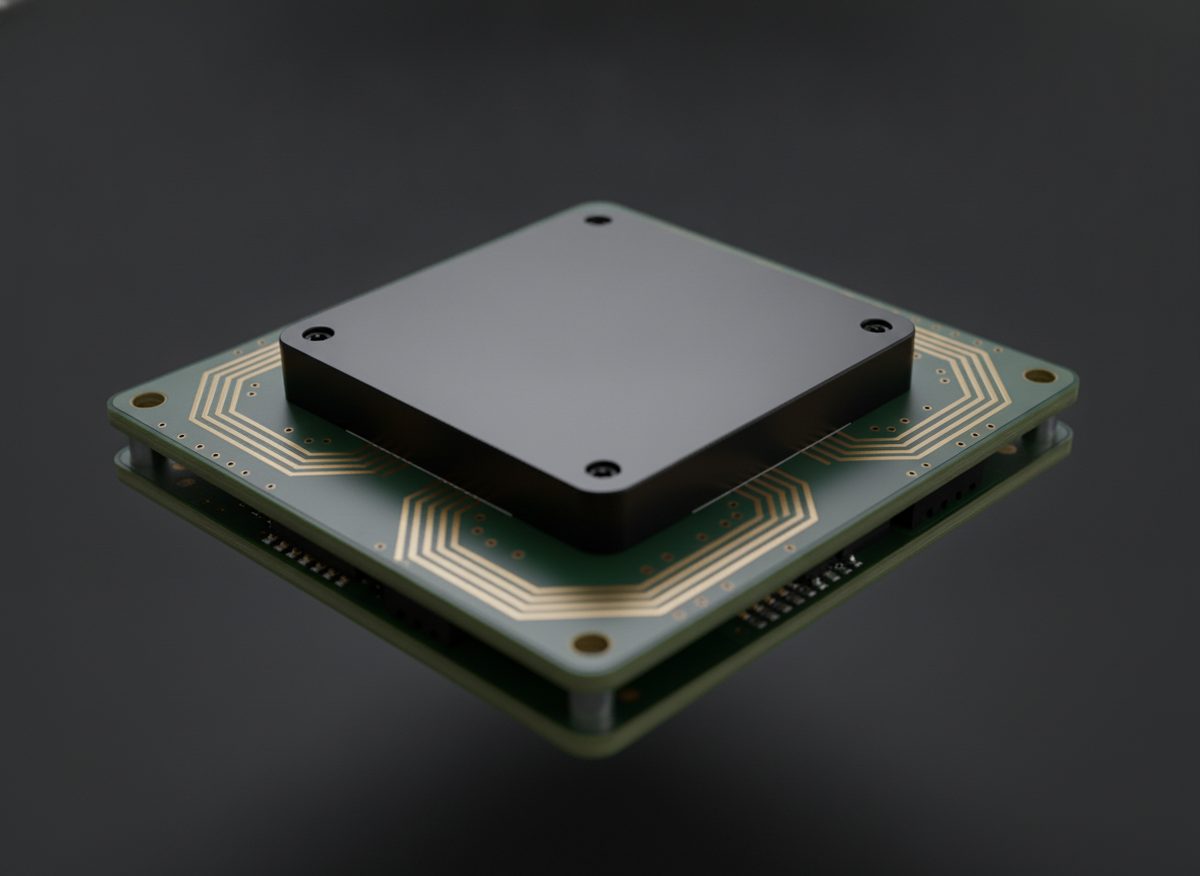

Board-level camera module for machine builders and vision
integrators. Supplied as a bare board with a ribbon or board-to-board interface so it drops into
your own housing — not a cased webcam.
Send the datasheet or part number you are trying to match.
We quote a sourced equivalent, a private-label version, or a pilot build — and we tell you plainly
when the answer is "no equivalent exists".
Nine lines we hold ready access to. Sample price shown is for a single evaluation unit;
batch pricing starts at 10 pcs. Anything not listed — send the spec and we will quote a
sourced or private-label equivalent.
Model
Product
Interface & Signal
Native Range
Sample
Typical Application
IW-PT-16B
Pressure transmitter
4–20 mA / RS-485 · NPT or BSPP
0–16 bar
$55
Water plants, compressors, hydraulic packs
IW-VT-20
Vibration transmitter
4–20 mA 2-wire · M8 / Magnetic
0–20 mm/s RMS
$99
Bearing condition on pumps, motors, fans

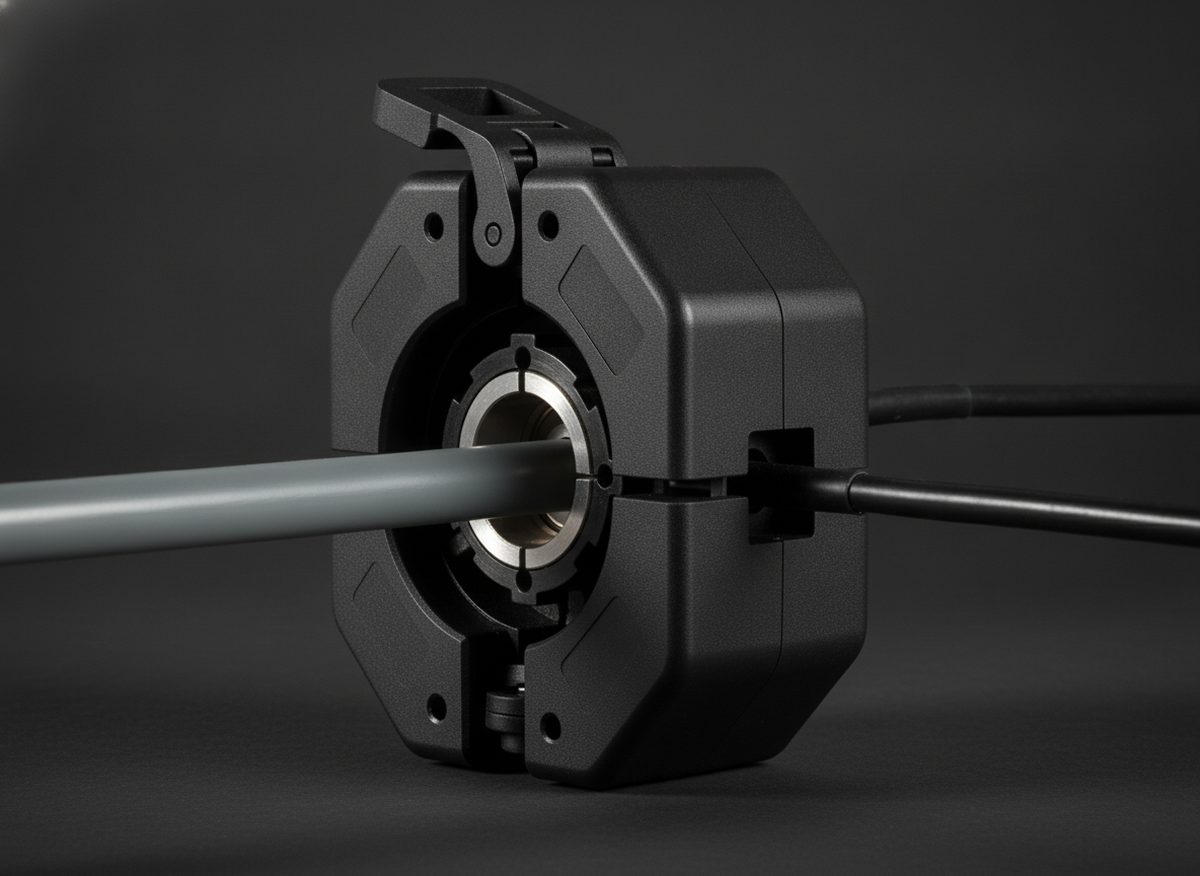

IW-CT-S100
Split-core CT
0–333 mV / 0–5 A · Clamp-on
0–100 A AC
$29
Energy metering, panel load profiling

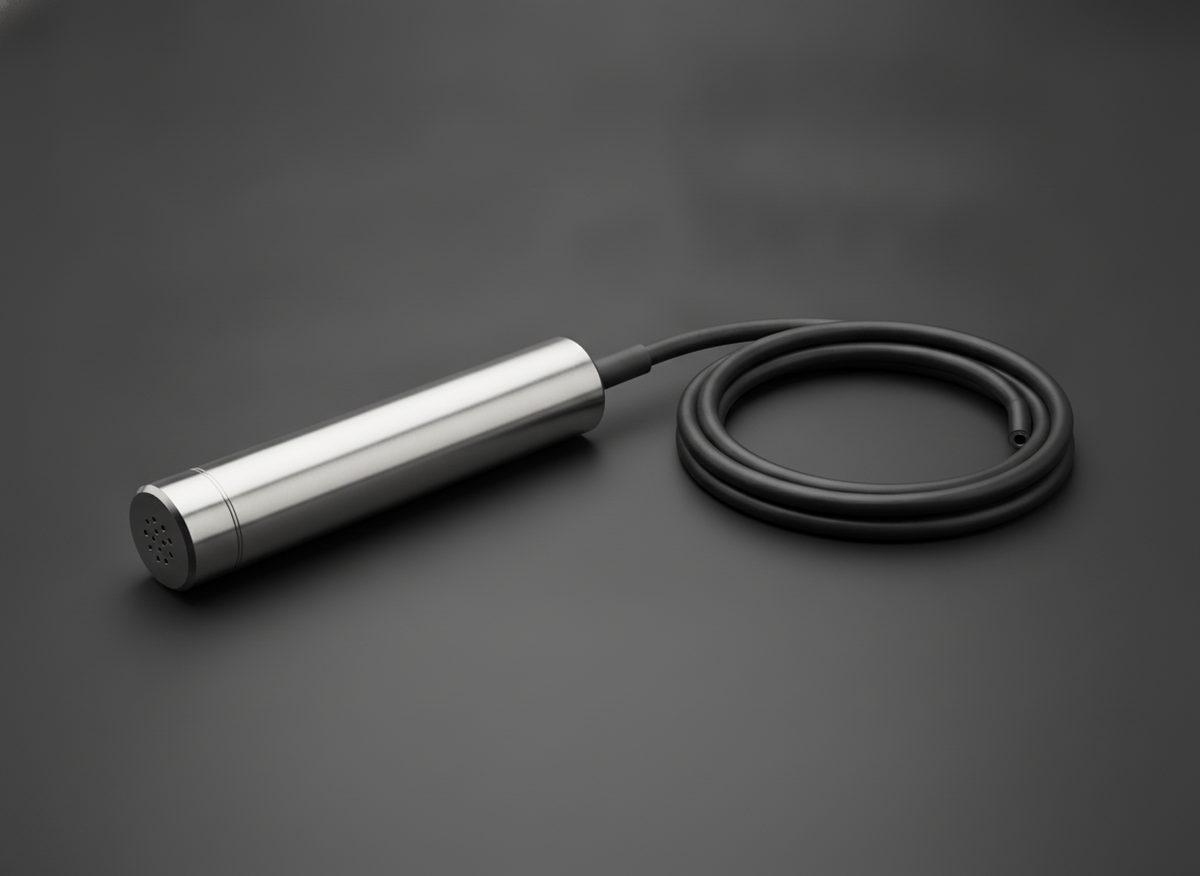

IW-LT-05M
Level transmitter
4–20 mA 2-wire · Vented PUR cable
0–5 m H₂O
$79
Wells, sumps, reservoirs, tank farms
IW-TH-DN50
Duct temp./humidity
4–20 mA / Modbus RTU · Flanged
0–50 °C, 0–100 %RH
$45
HVAC, BMS, clean rooms, server halls
IW-IR-M18
IR temperature head
4–20 mA · M18 threaded barrel
0–500 °C
$65
Rotating bearings, extrusion, ovens
IW-UL-10M
Ultrasonic level
4–20 mA / Modbus · PVDF
0–10 m
$125
Chemical and acid tanks, non-contact
IW-DW-2000
Draw-wire displacement
4–20 mA / Potentiometric · Steel wire
0–2 000 mm
$155
Lifts, forklifts, hydraulic cylinder stroke
IW-PX-K10
Inductive prox. kit
PNP / NPN · M12 & M18 · Weld-spatter rated
4 mm / 8 mm
$150
Line-side spares — 10-pc maintenance pack
Prices in USD, ex-works Shenzhen, single-unit sample quantity. Duty and freight quoted separately —
see Reliability & Terms.
Documentation
Drawings You Can Design Against
Outline dimensions and loop wiring go out with the quote — before you buy anything. If your
mechanical or controls engineer needs a STEP file, a 3D model or a pinout, ask and it ships the
same day. This is the part most suppliers never send.
IW-PT-16B · Outline DimensionsSVG · 760 × 500
2-Wire 4–20 mA Loop WiringTypical PLC / DCS input
Bench Calibration & Dispatch FlowEvery unit, every order
Exactly What The Certificate Says — And What It Does Not
Buyers get burned by vague claims, so here is ours stated precisely. Read this before you rely on
the document for a compliance file.
Item
What you receive
Test method
Five-point static pressure (or displacement) comparison, run ascending then descending,
so hysteresis and repeatability are visible in the numbers — not just a single spot check.
Reference standard
Our in-house bench reference, itself verified on a fixed interval against a
higher-grade laboratory standard. The record states the reference used and the date.
What is recorded
As-found and as-left reading at every test point, the deviation in % F.S., ambient
temperature, the operator's initials and the unit's serial number.
Traceability
The record is traceable to our own reference chain. It is not a NIST-traceable
or ISO/IEC 17025 accredited certificate, and we will not label it as one.
If you need accredited calibration
Tell us at quote stage. We will send the unit to an accredited third-party laboratory
and quote that service separately, with the lead time it adds.
If a unit fails
It does not ship. You get a replacement unit and the failed record, so you can see what
happened rather than take our word for it.
Terms
How We De-Risk The Order
Every row below is a commitment we will put in the quote document. If we cannot deliver on a line,
we will say so before you order rather than after.
What you are worried about
What we commit to
"The unit arrives out of spec."
Every unit is bench-tested before dispatch, and the record ships with it. If it deviates from
its own record on arrival, we replace it free — you keep the original record as evidence.
"The part goes on 20-week lead time mid-project."
For any batch order we quote a primary and a pin-compatible alternate on every BOM line,
both verified before we quote. You decide which one goes into production.
"I get a sample that is not the batch I receive."
First-article inspection on every batch. If the first article does not match the sample
you approved, the batch does not ship.
"I need to see it before I wire money."
One-unit evaluation samples at list price, no MOQ. Buy the sample first, put it on your
bench, then decide about the batch.
"Duty and freight will surprise me at the door."
The quote states the shipping term explicitly — EXW, DAP or DDP — with the freight and
duty treatment written out. We do not leave it implied.
"Payment risk / someone changes the bank details."
Bank details are confirmed by voice or video, never by email alone, including on any
change. Card and PayPal accepted for sample orders.
"Who actually answers my technical questions?"
The engineer who ran the bench test on your unit, by email, with a stated response
window. Not a sales intermediary.
"I need a different range / thread / cable length."
Ranges, threads (NPT / BSPP / metric), cable lengths and connector types are made to order.
Send the datasheet you are trying to match and we will quote against it.
Request a Quote
Send Us The Spec
Two fields is all we need to start. If you have a datasheet, a drawing or a competitor part number,
paste it in — that gets you a faster, more accurate answer than any form.
Tell us the quantity and the target in-hand date. We will return a formal quotation with unit
pricing by quantity band, the shipping term, the lead time and the payment schedule — as a
document your finance team can process directly.
